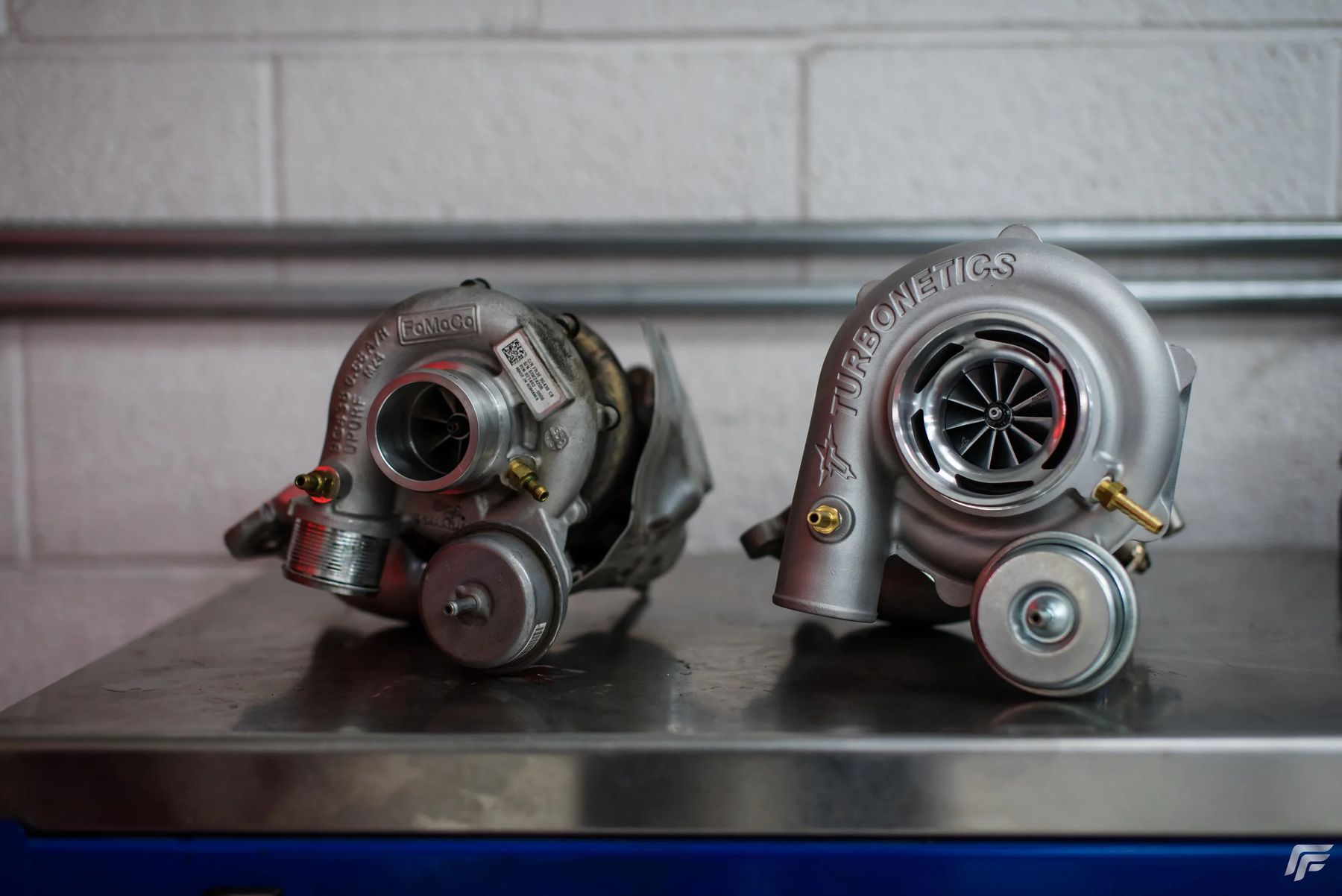

It has been one long year for The Function Factory, Funtion Factory Performance (Coming Soon), Full-Race Motorsports and Turbonetics / PTE. Through the dark and mist, we have been quietly testing the Turbonetics NX2 drop in turbocharger unit on our 2016 Ford Mustang Ecoboost.

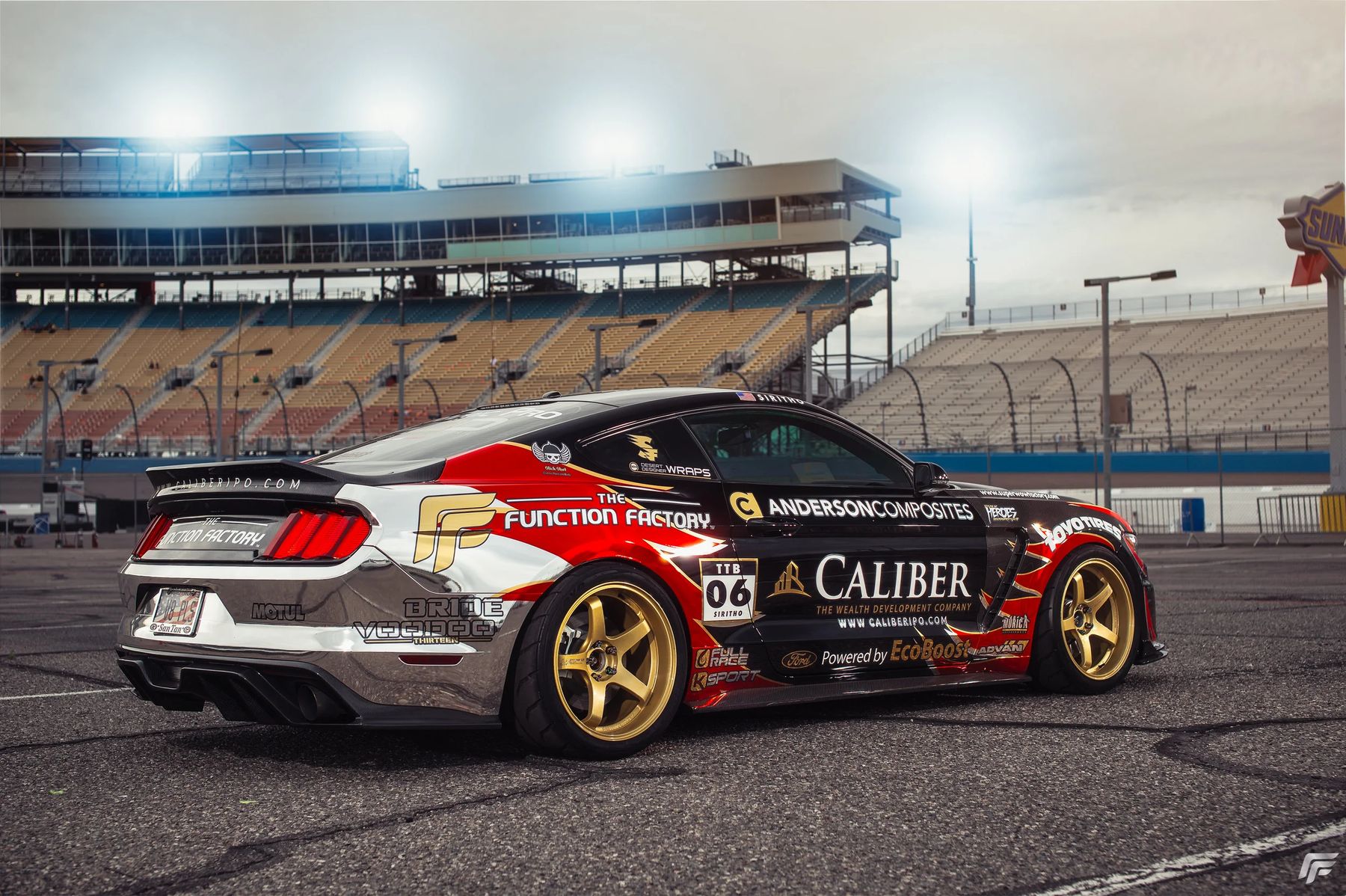

Within that time frame we have been through over 5 different turbos and 2 different tunes. I am approaching over 30,000 miles on our last prototype unit with zero issues. To answer the very common question that we find a bit funny.. yes indeed our Mustang is bone stock inside of the engine. Our Mustang is equipped with every Full-Race Motorsport goodie possible from their charge pipes, blow off valve, intercooler, cold air intake, downpipe and race spec exhaust. Providing over 27 pounds of boost to our 2.3 liter Ford Ecoboost Engine is the Turbonetics NX2. Why do we call it a drop in unit? Because it is exactly that. With ZERO modification, stock charge piping, blow off valve, and intercooler, this turbocharger is able to be installed in a matter of hours.

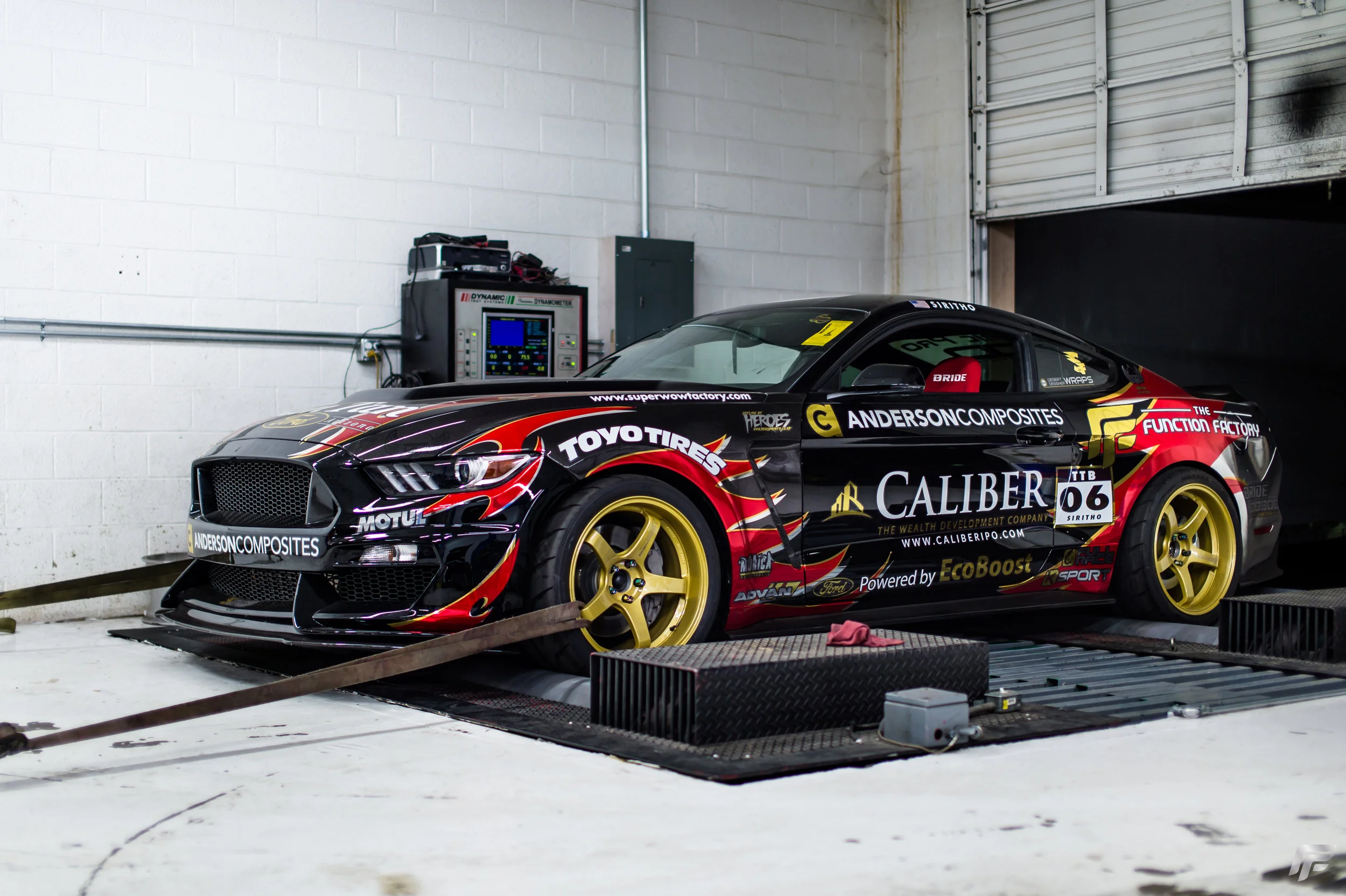

Before installing the turbo, we made sure to get a baseline on our Mustang. Stock turbo, 91 Octane, full bolt-ons and no tune, we were able to make 310WHP with 312WTQ. Freak of nature? Who knows, but this car did rip on stock turbo.
The question everyone has been asking, what power was made when you installed the turbo? For the time being, that is being kept a secret but to let you in on some numbers, we were able to make over 450WTQ. Our Mustang is not equipped with auxiliary fuel, you can guess we were running into some fueling issues there. We are working as fast as we can do get that issue solved and back on the dyno to make a full pull on MAXIMUM boost. Currently the car is running a 91 octane and MS109 Race Gas Map tuned on a Cobb Access Port. The turbo pulls HARD throughout the entire RPM range and provides over 1000RPM of reduced spool time assisted by the dual ball bearing, billet compressor wheel and twin scroll design.

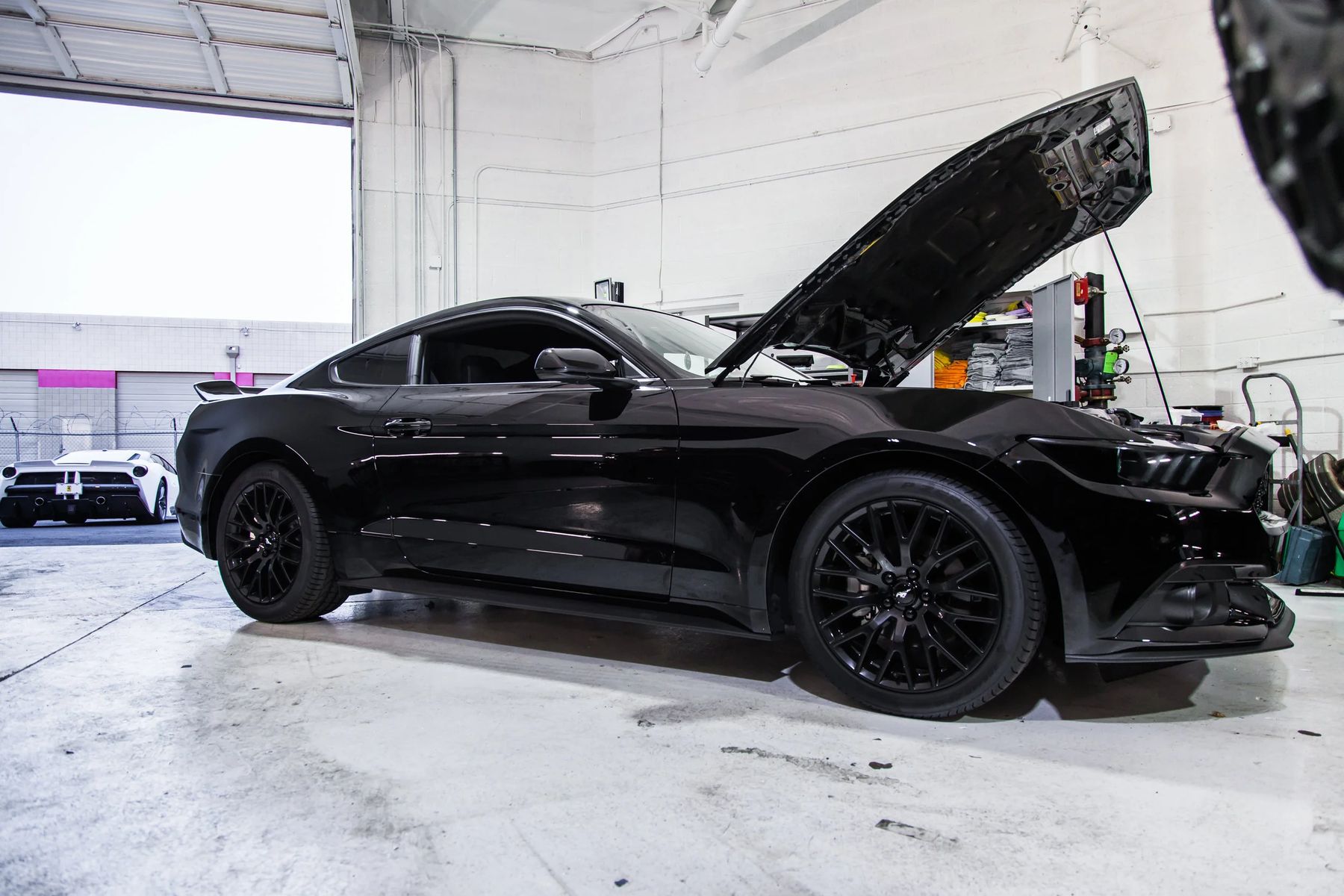

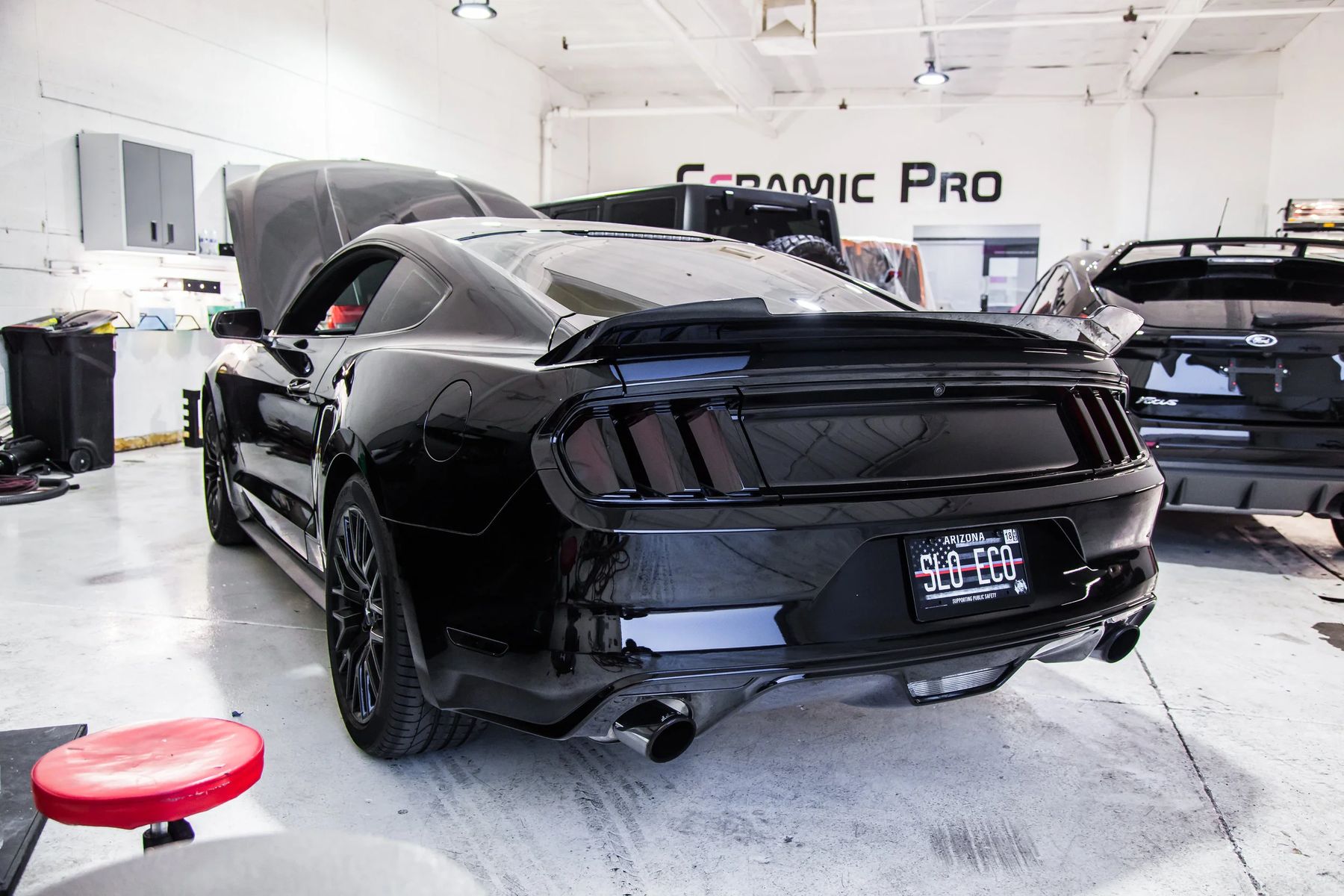

We have been working on something for the past 9 months that we are getting ready to share in the near future, but in the meantime we are excited to announce that we have sold AND installed our very first Turbonetics turbo to a local client in Arizona. Chris was fantastic to work with and best yet, it was great to see his reaction when he rode in our Mustang. He complimented how strong the power came on and how much quicker it was than his stock turbo tuned on E30.

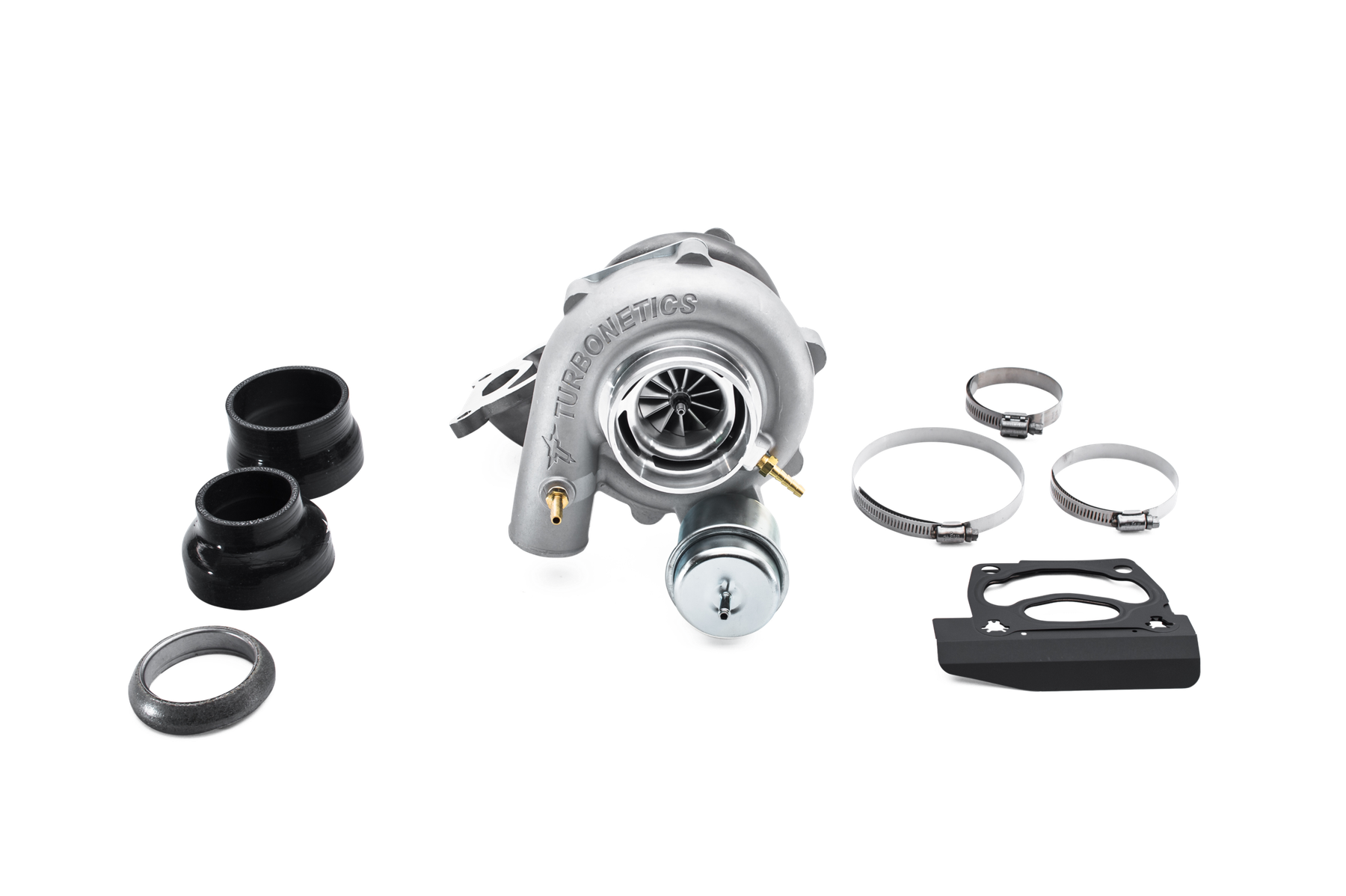

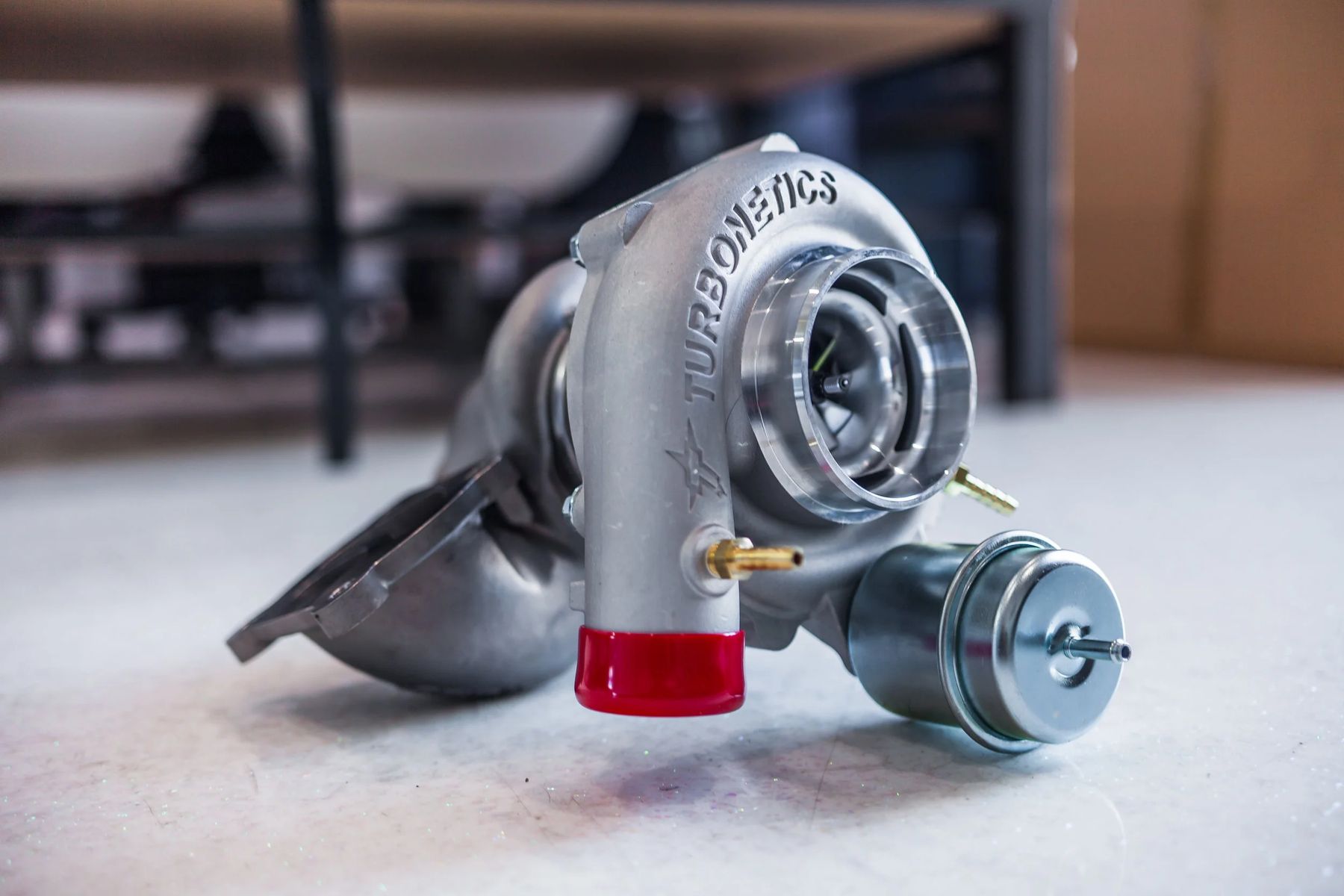

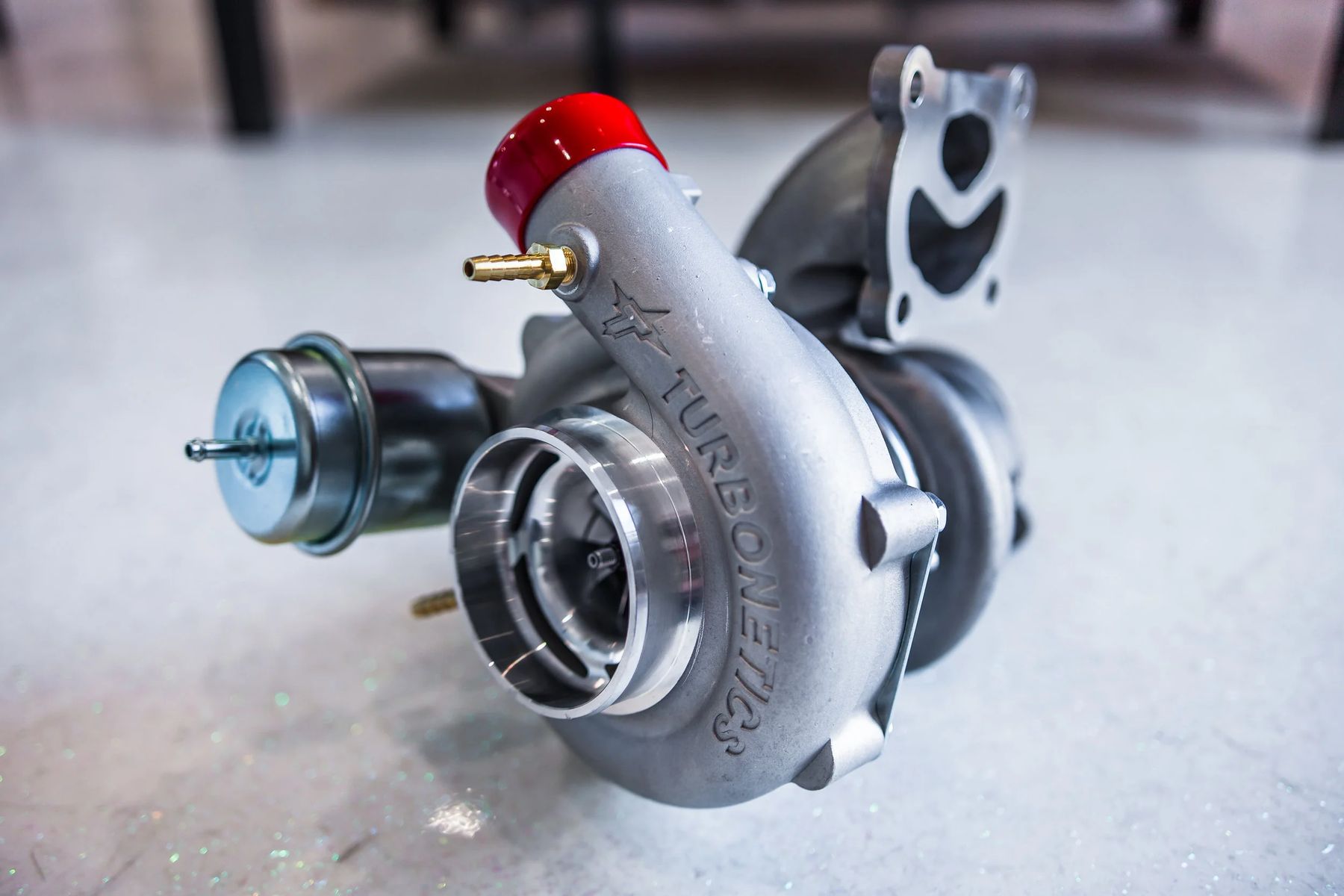

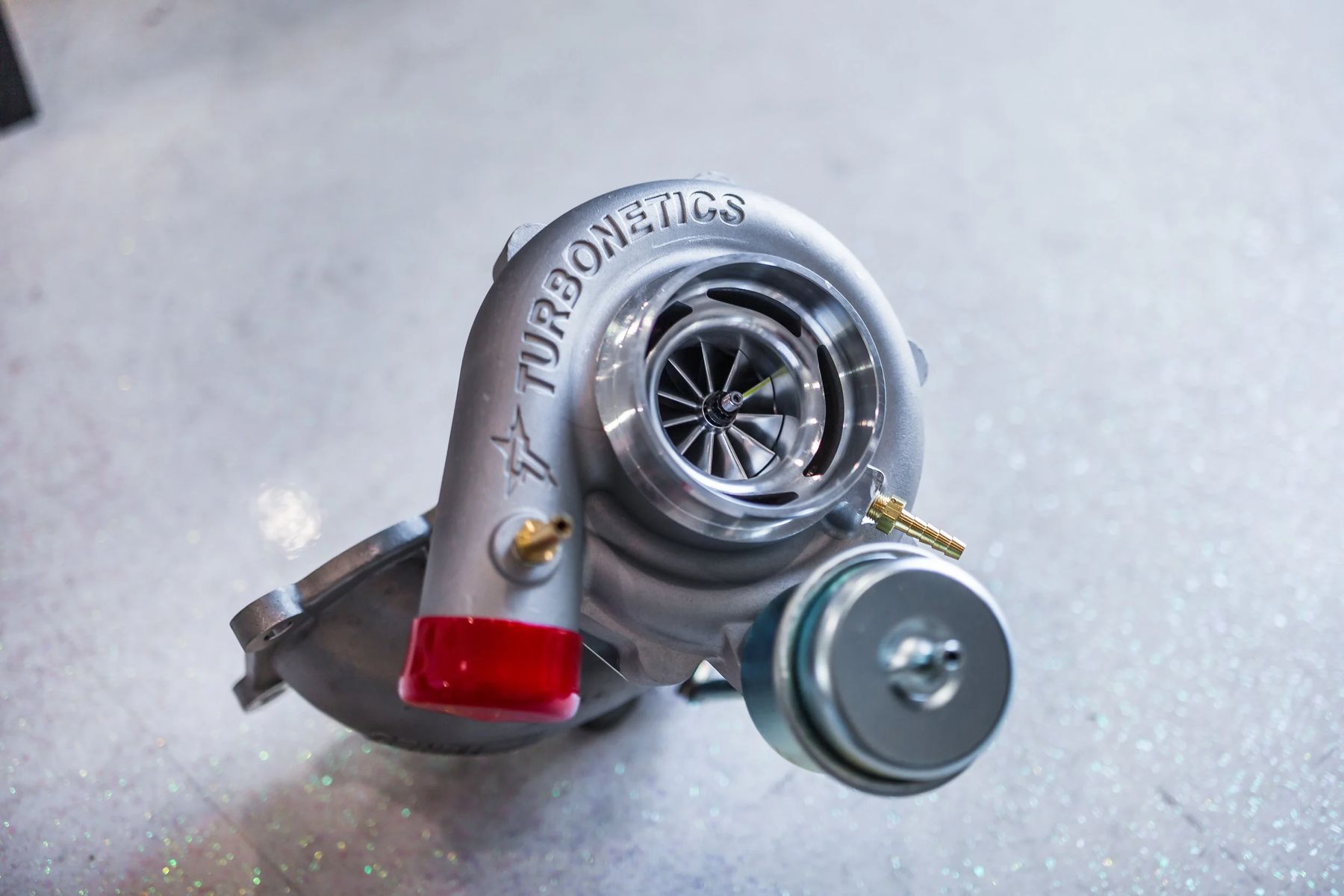

Here is Chris' actual Turbonetics NX2 Drop In Turbocharger for his 2017 Ford Mustang Ecoboost.
We'll walk you by step by step of this installation. A lift is recommend if you have one. Basic tools including a full metric set, 3/8 ratchet and needle nose pliers are required. You will lose both oil and coolant throughout this process. During our install, we lost almost exactly 1 quart of coolant and a decent amount of oil. We take zero risk when it comes to lubrication and only recommend the best replacement fluids for your Mustang. Trusted by nearly all Le-Mans Racing teams, Ford Performance / Roush Road Racing / Kohr Motorsports Ford GT4 Mustang's, Motul Lubricants lead the industry in ultimate protection.
What will you need exactly?
1 Turbonetics NX2 Turbocharger

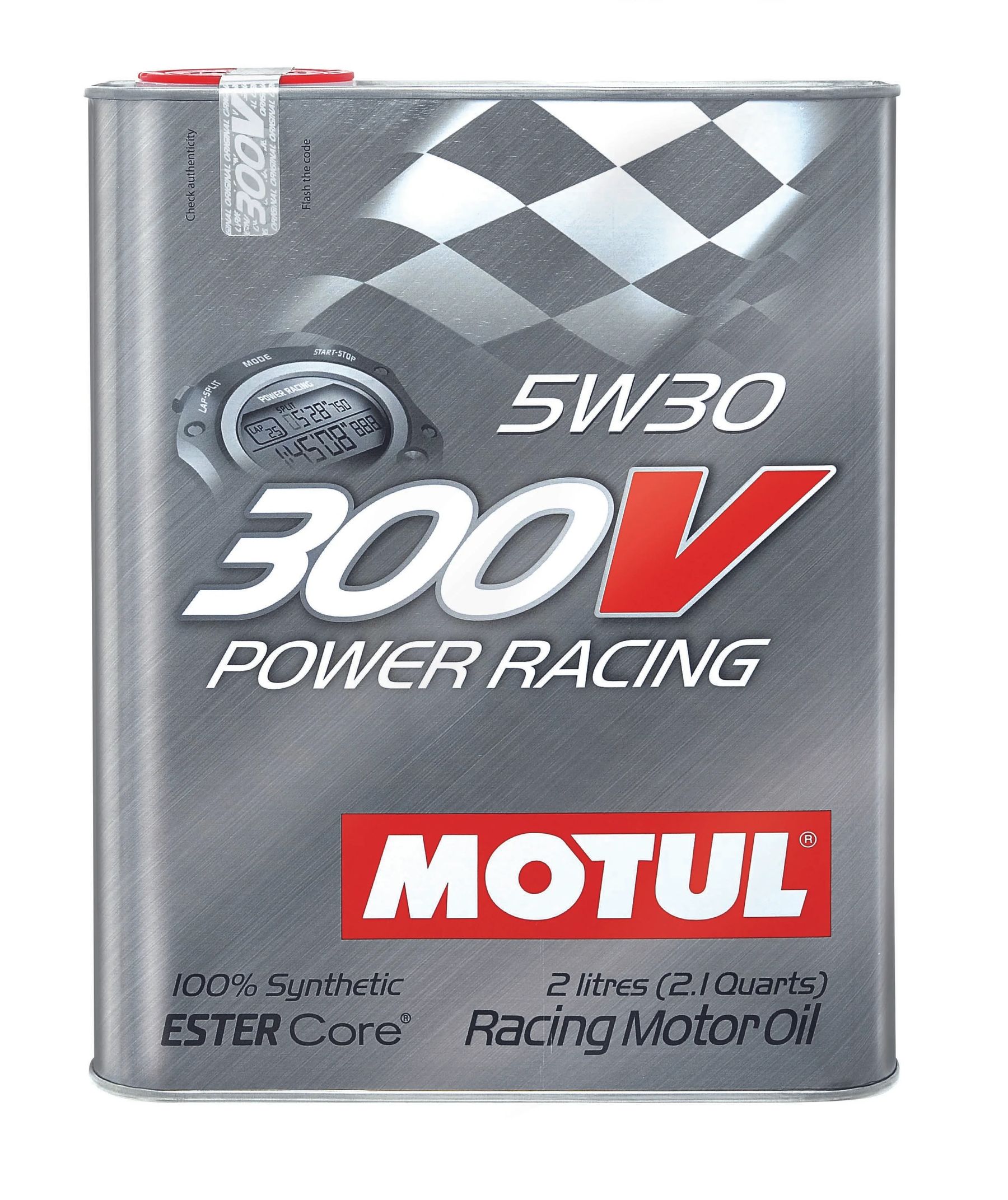

3 Cans of Motul 300v 5W30 (Recommended)
1 Bottle of Motul MoCool
1 Jug of distilled water
1 Ford Motorcraft Oil Filter
Drip pan / Oil catch
Basic Tool Set (Metric)
Lift is recommend but ramps or a jack will work just fine (ALWAYS make sure to use jack stands)
Cobb Access Port (Highly recommend or any tuner)
Some banging tunes to get you excited about this install

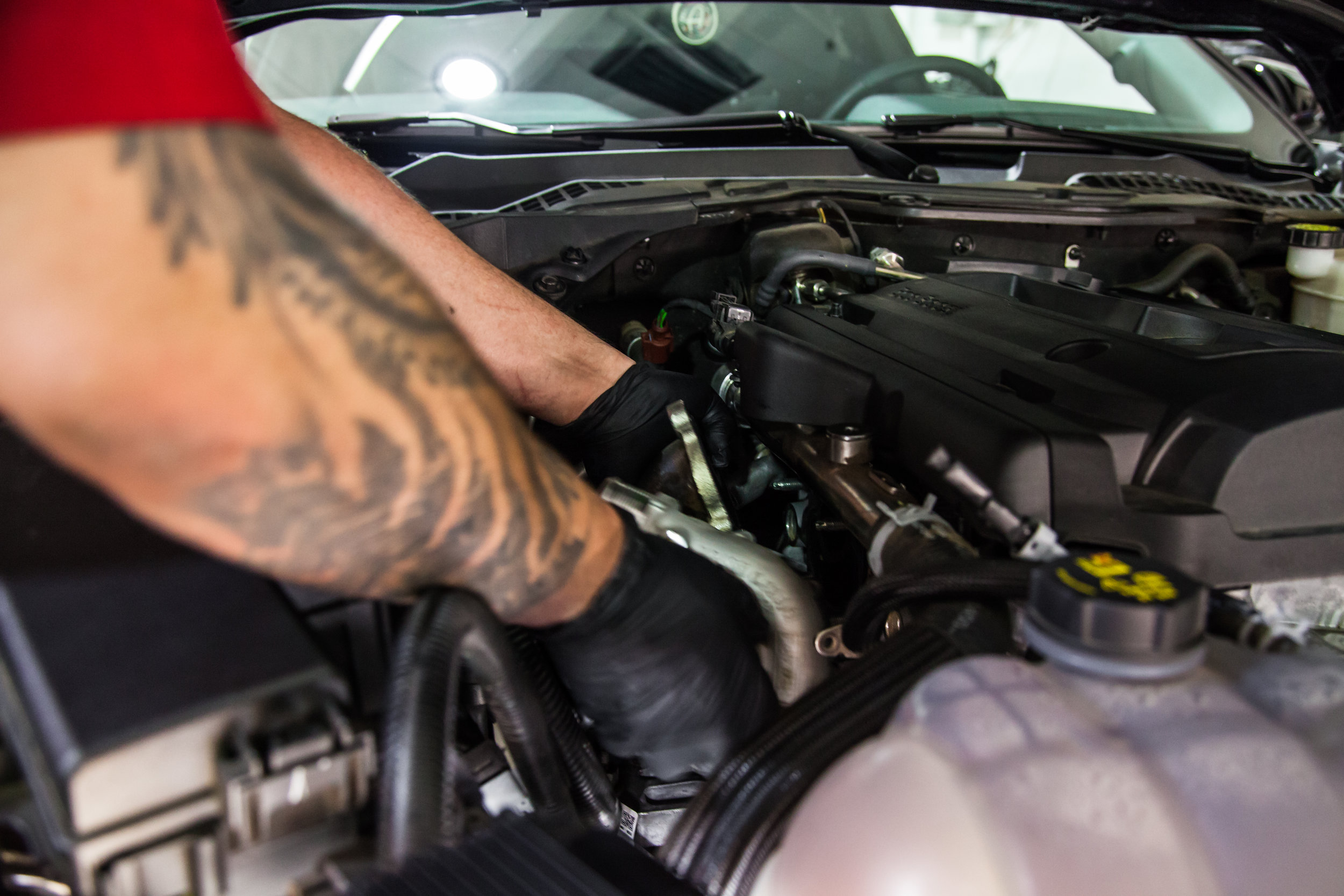

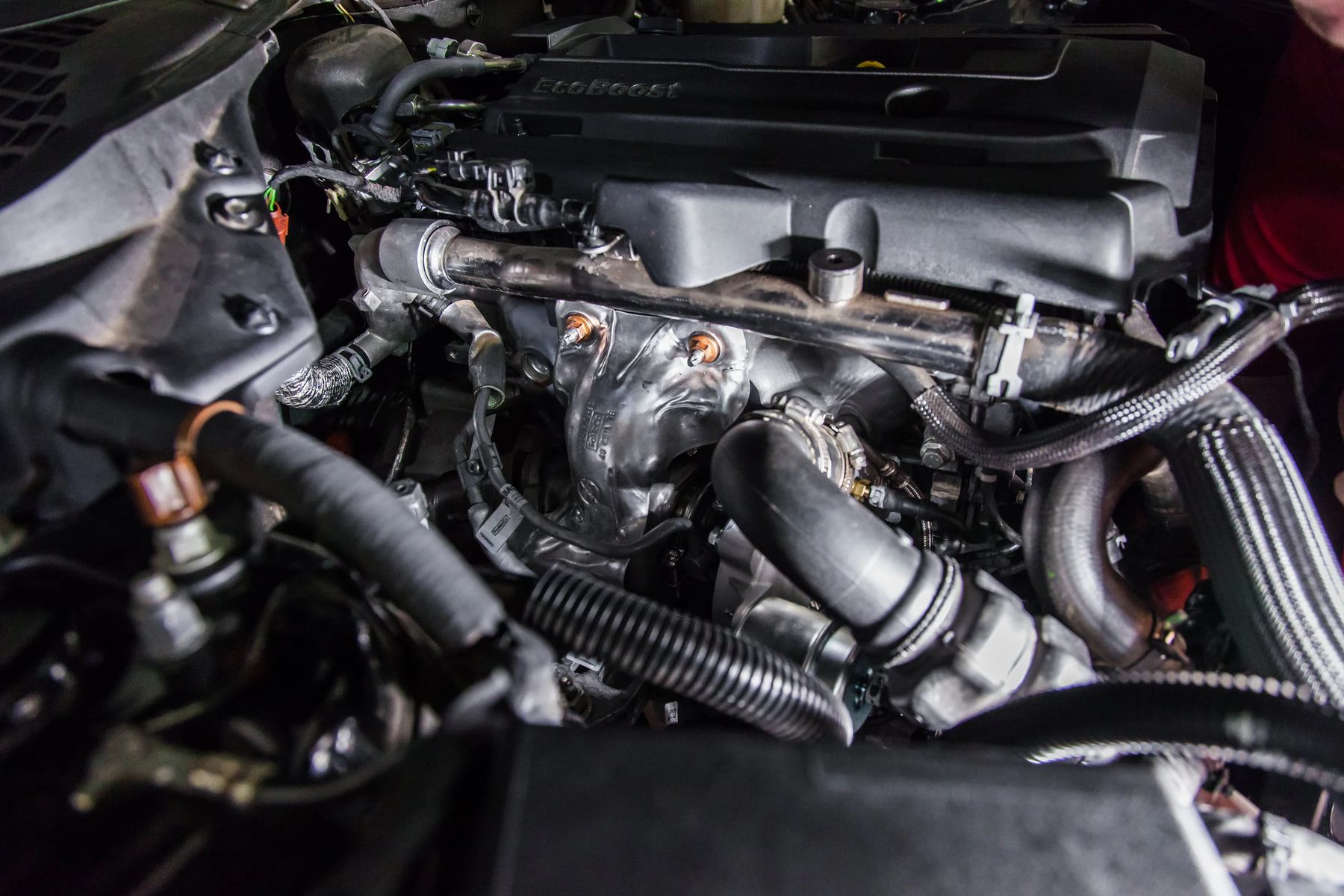

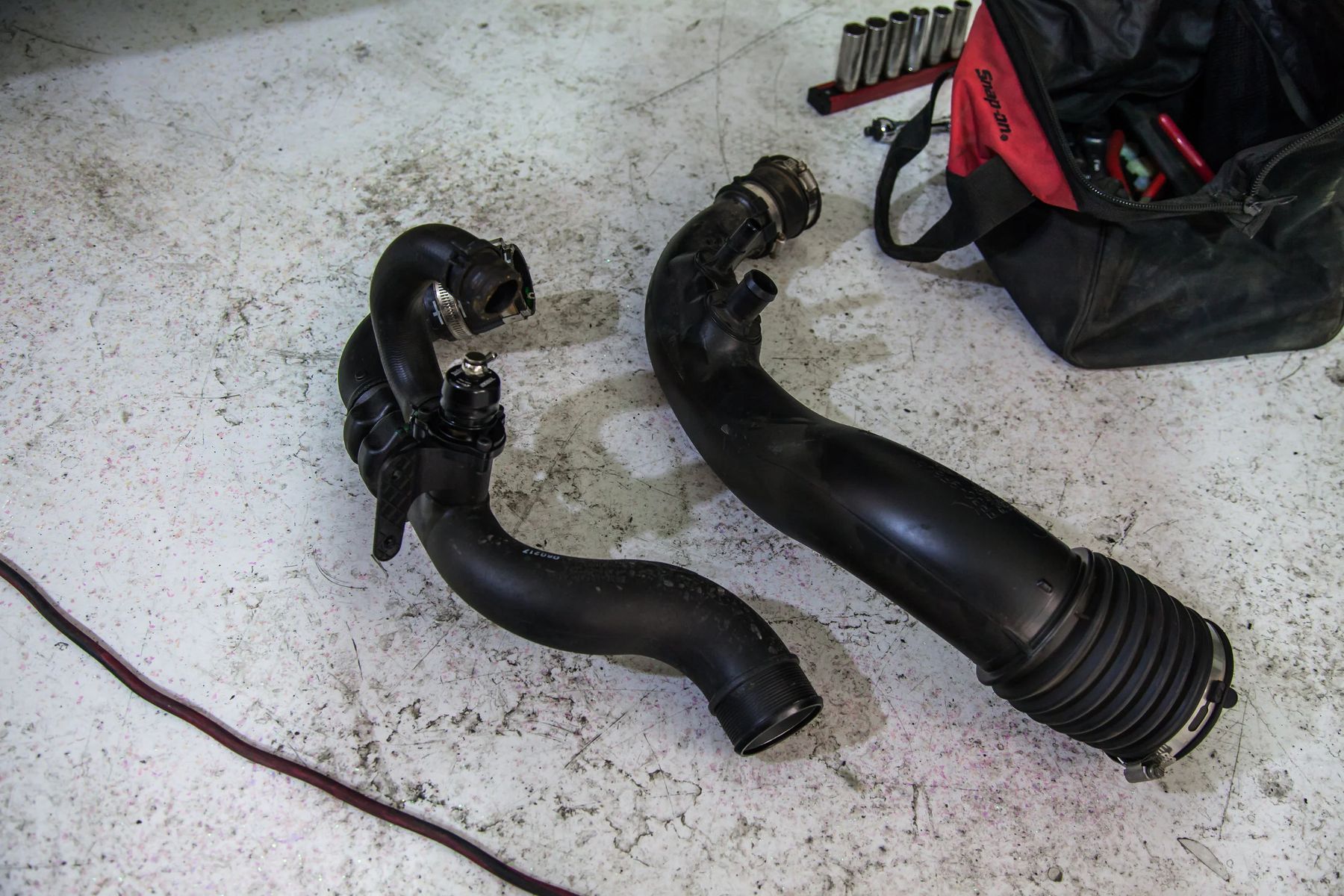

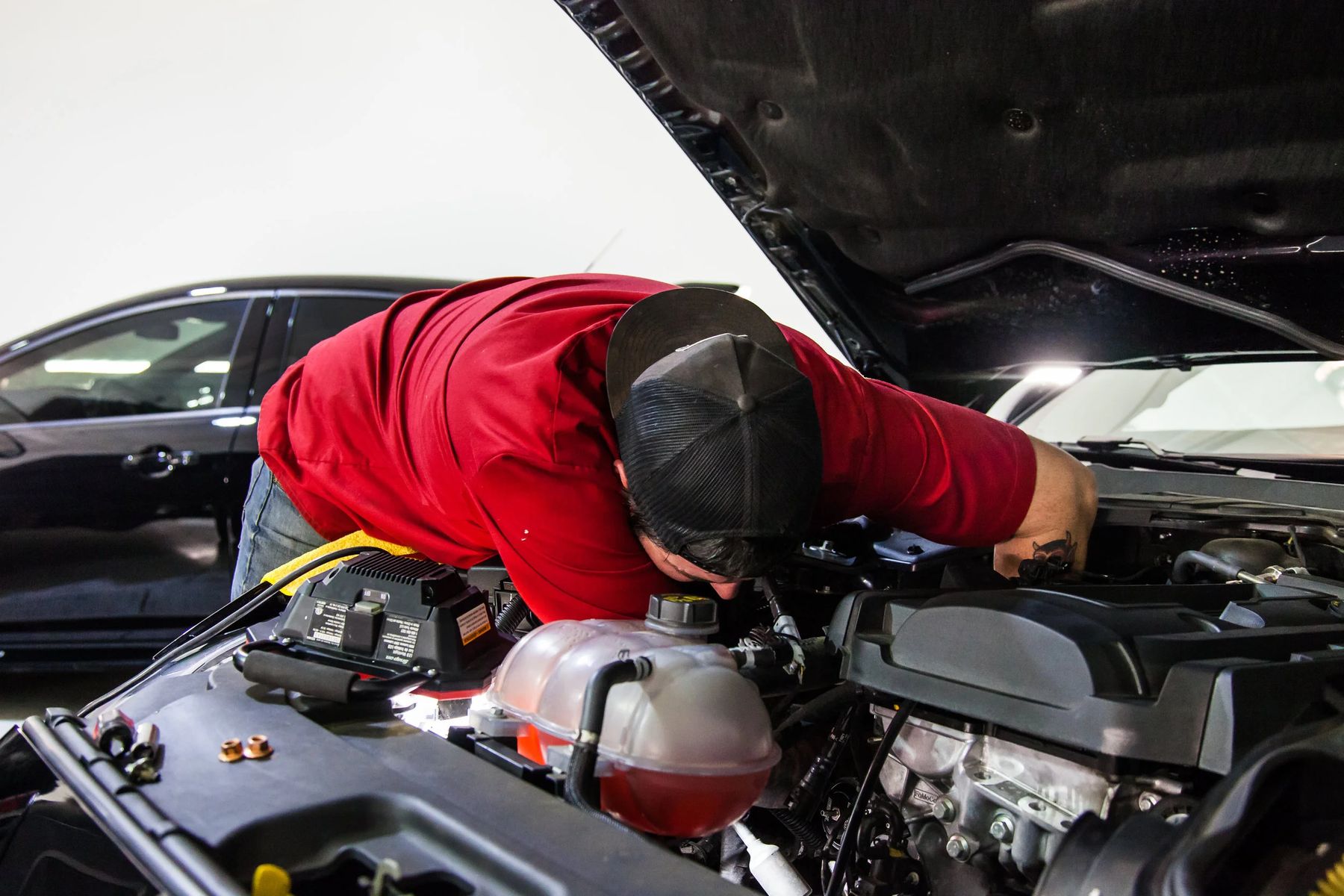

To start, make sure the car is completely cooled off, if not... I mean you're more than welcome to find out and comment on this post. Allen begins by removing the stock intake and hot side charge pipe.

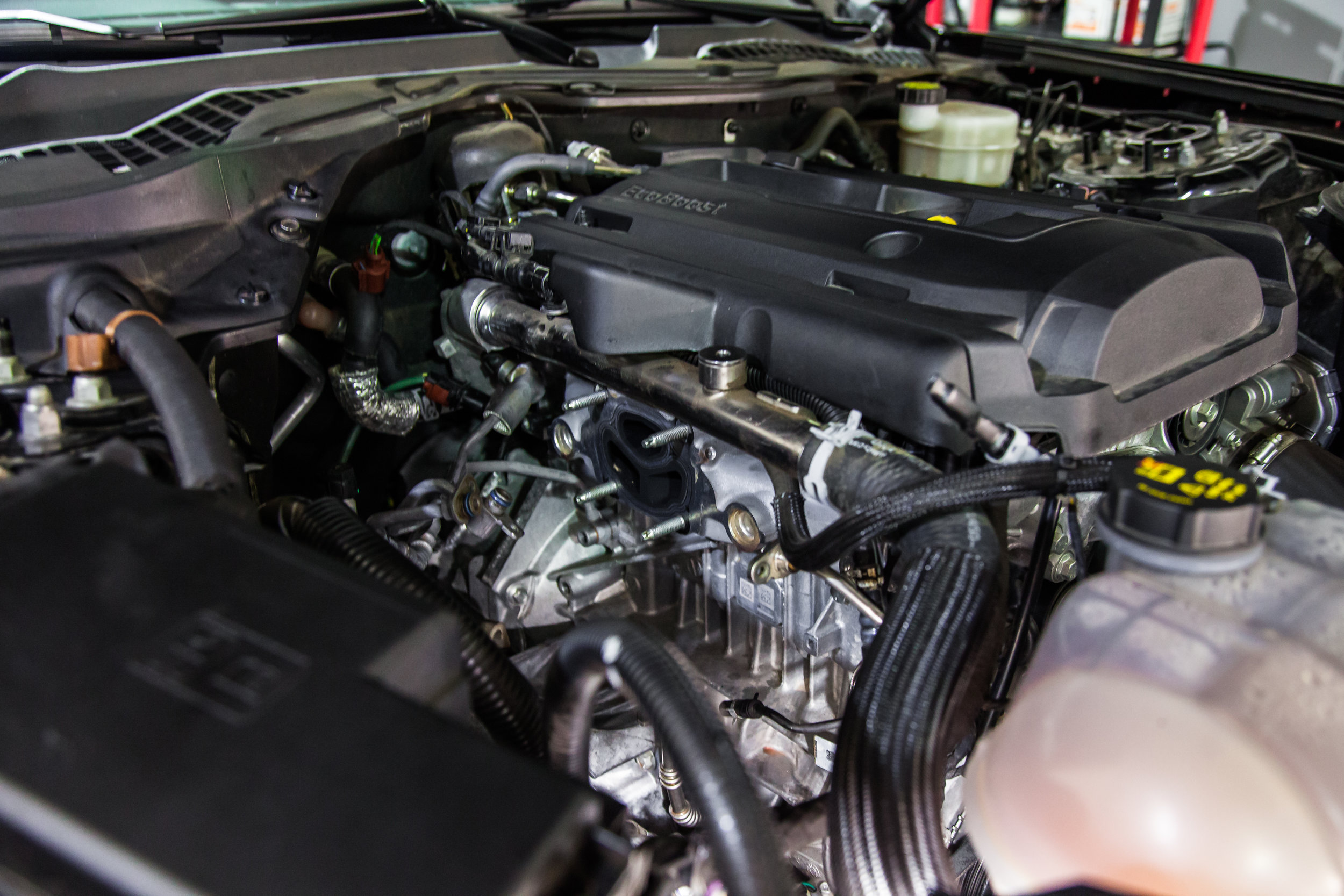

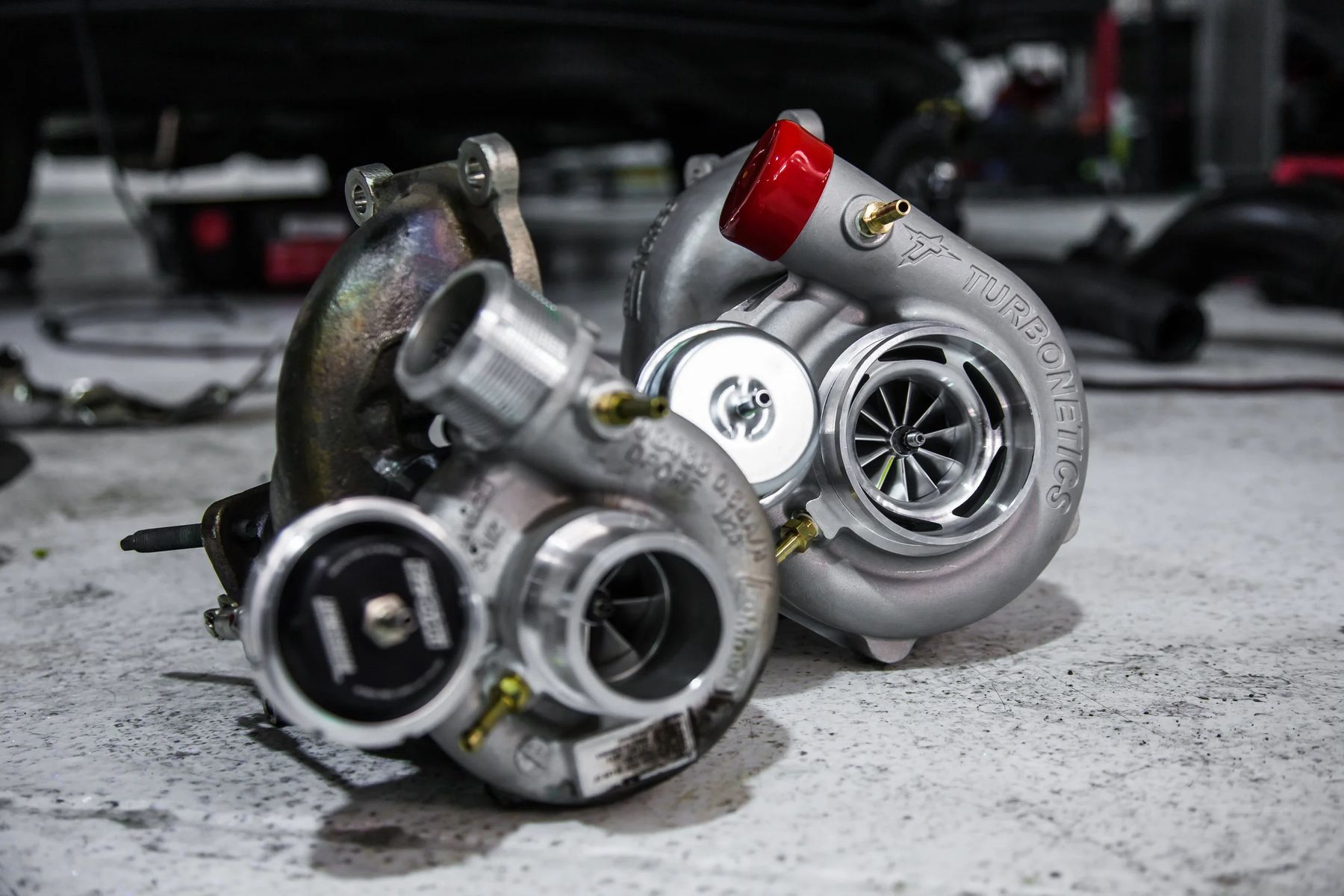

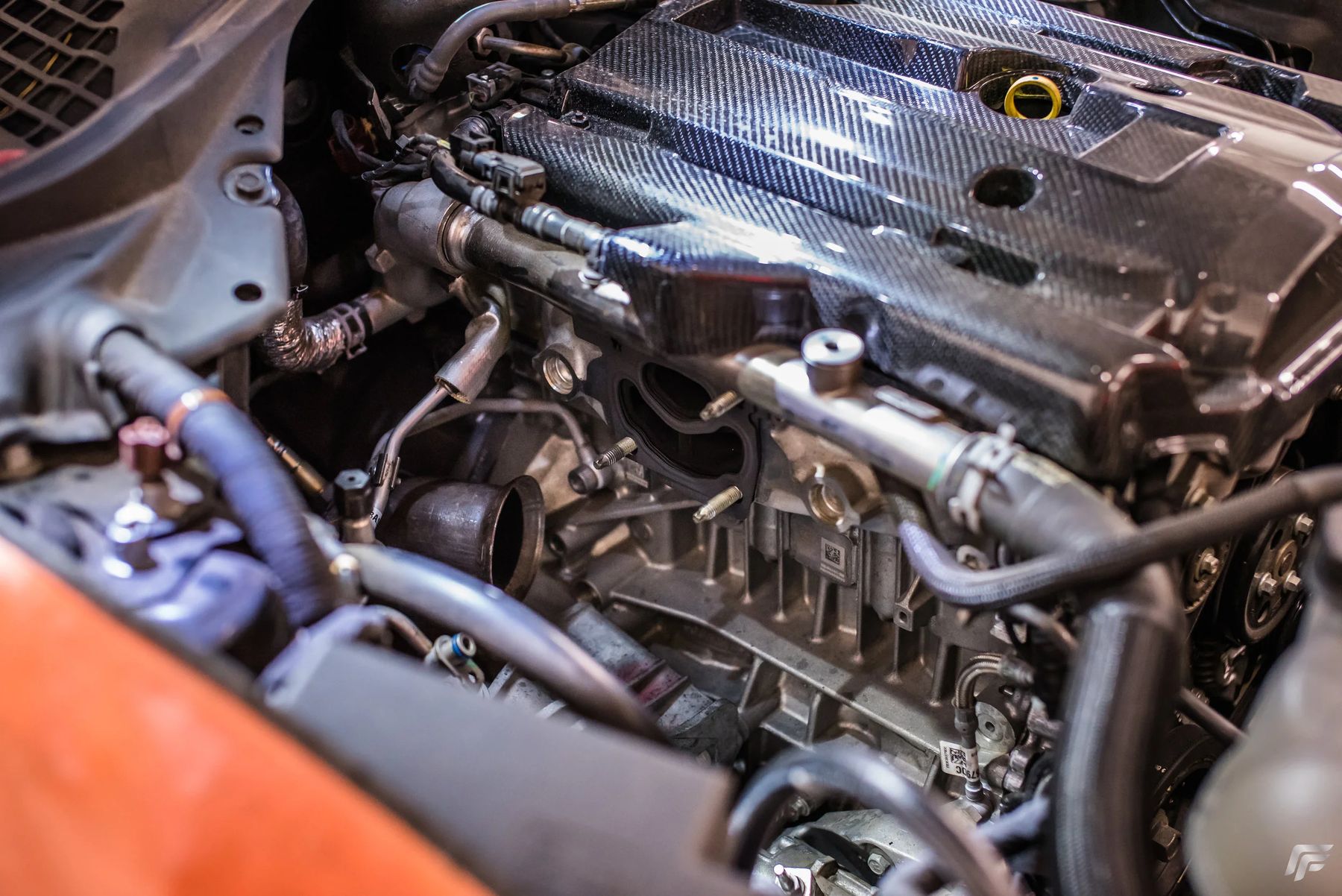

Carefully remove the coolant and oil lines from the OEM turbocharger. Do not remove the oil drain from the block, disconnect it from the CHRA / turbocharger. Again, we warn you to make sure the car is cooled, if not, again, please comment on this post to tell us what happened. Disconnect your O2 Sensor from the back of the head. Using needle nose pliers, remove all vacuum lines connected to the turbo. There are two bolts on the back of the turbo, you will need to loosen these to remove either your aftermarket or stock downpipe. 4 bolts hold the turbocharger to the head, 2 on top, 2 on the bottom. If you haven't had 3rd degree burns yet, remove the 4 nuts and other nuts that hold the heat shield. Keep the heat shield as you will reuse it. The turbo should be completely loose at this point, pull it straight out and run to the nearest stereo to blast your favorite song as we are ready to start reassembly with your new turbo.

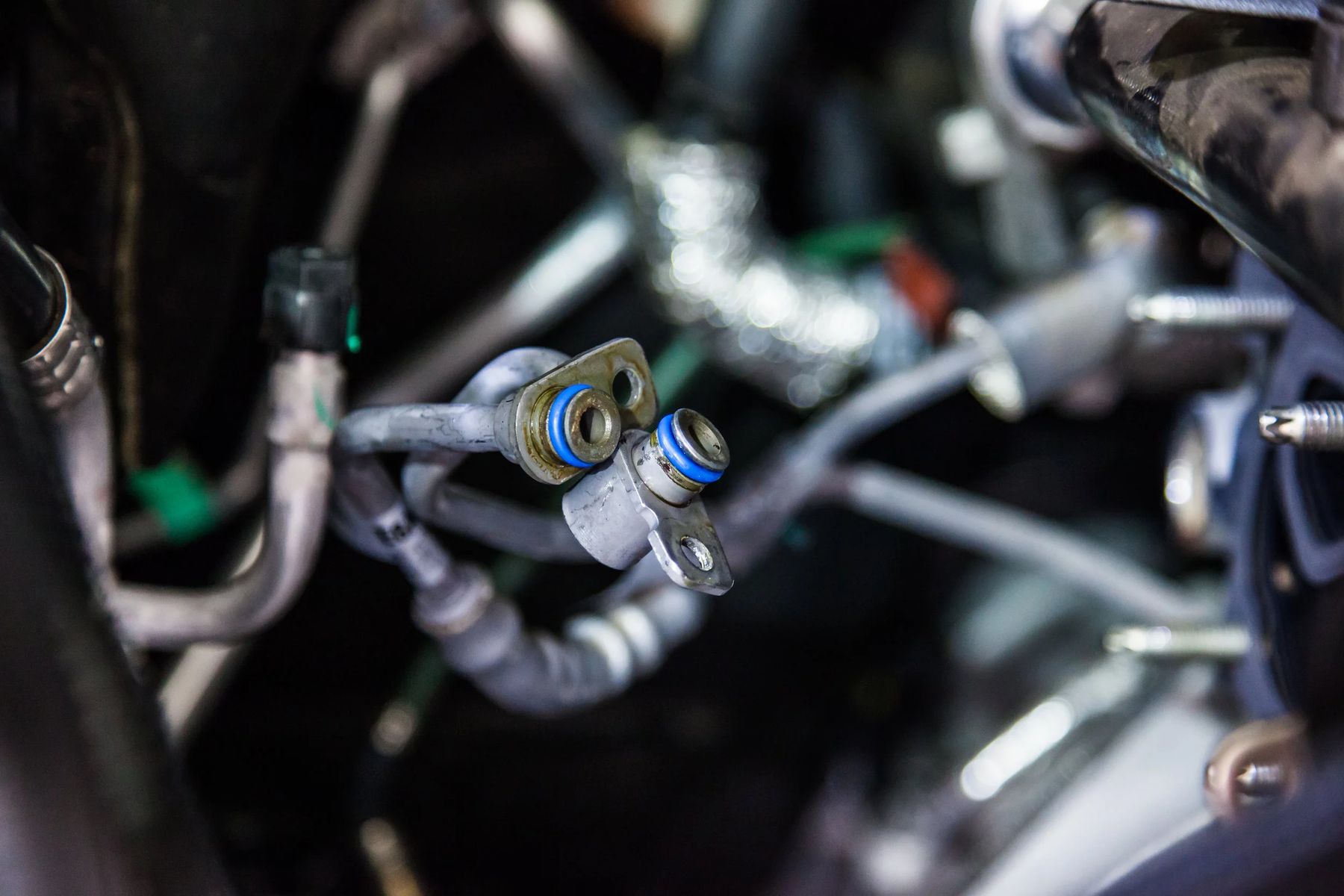

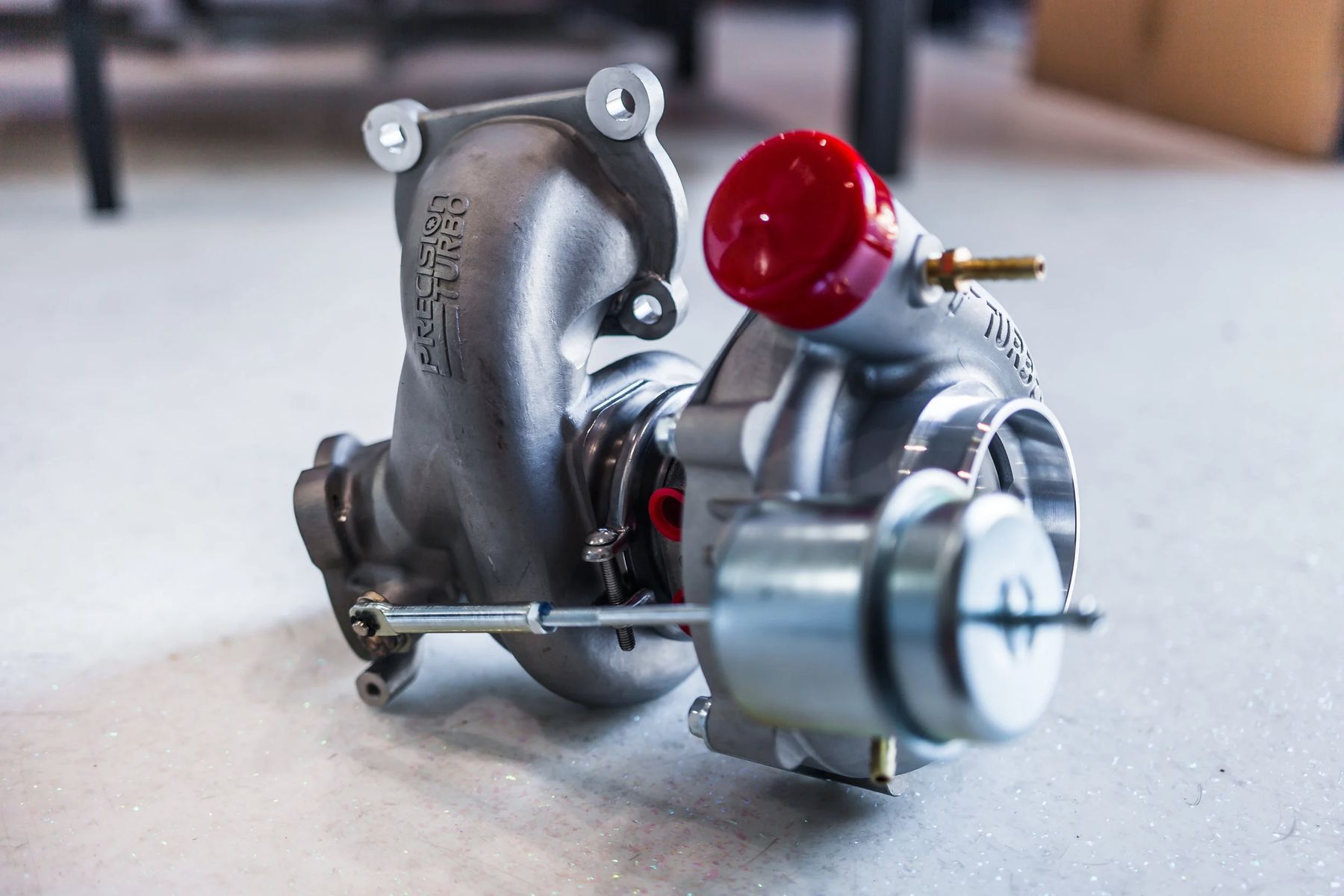

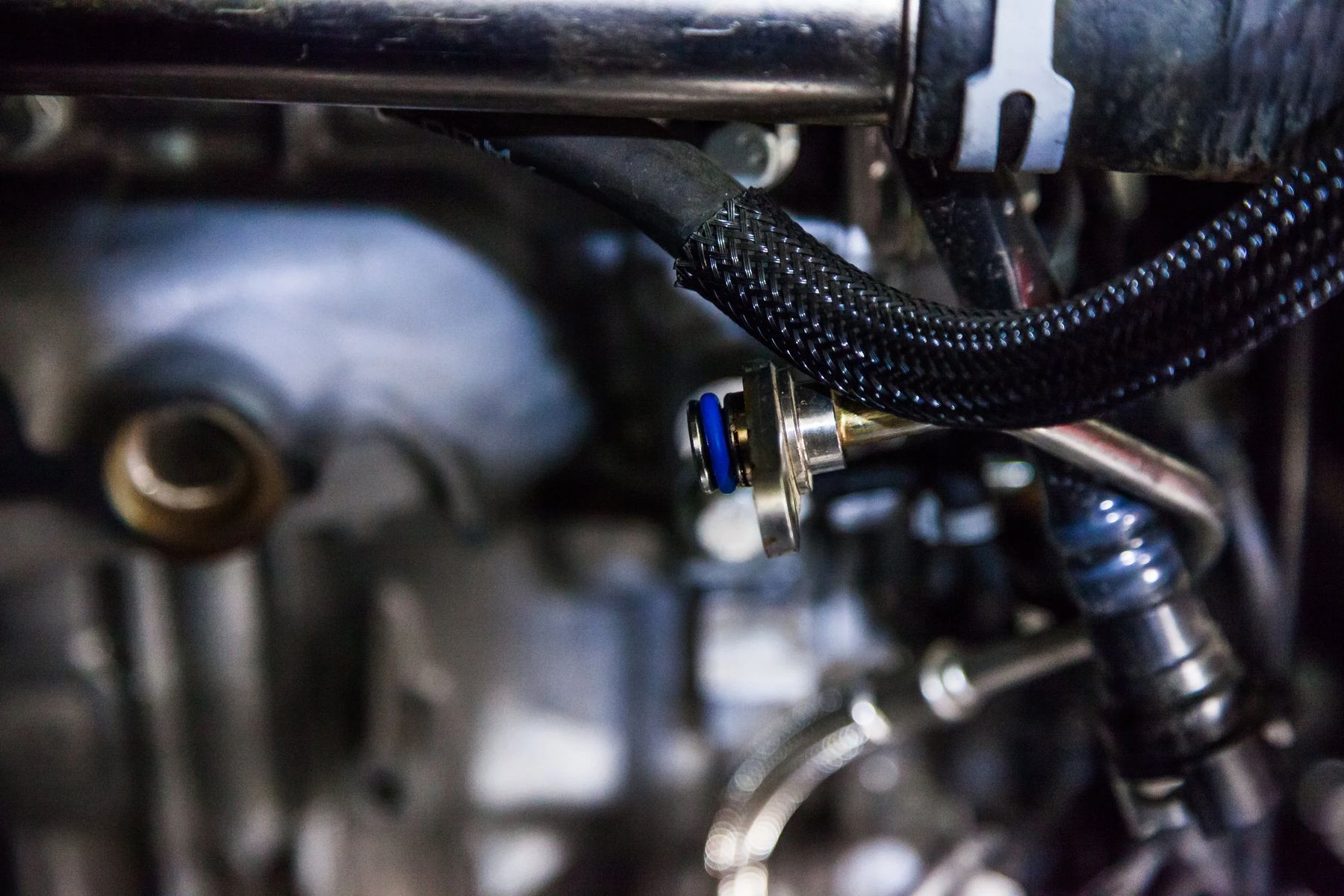

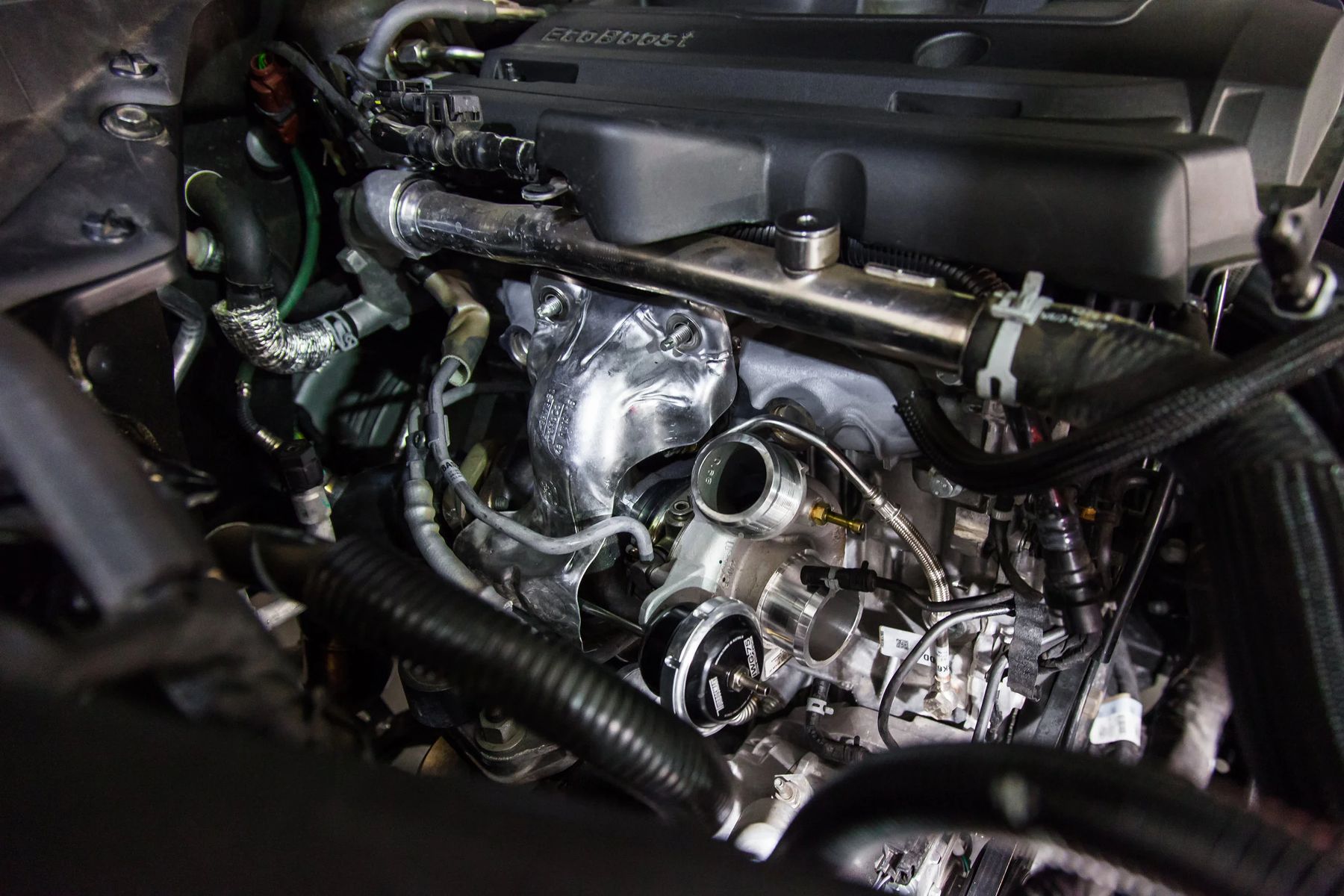

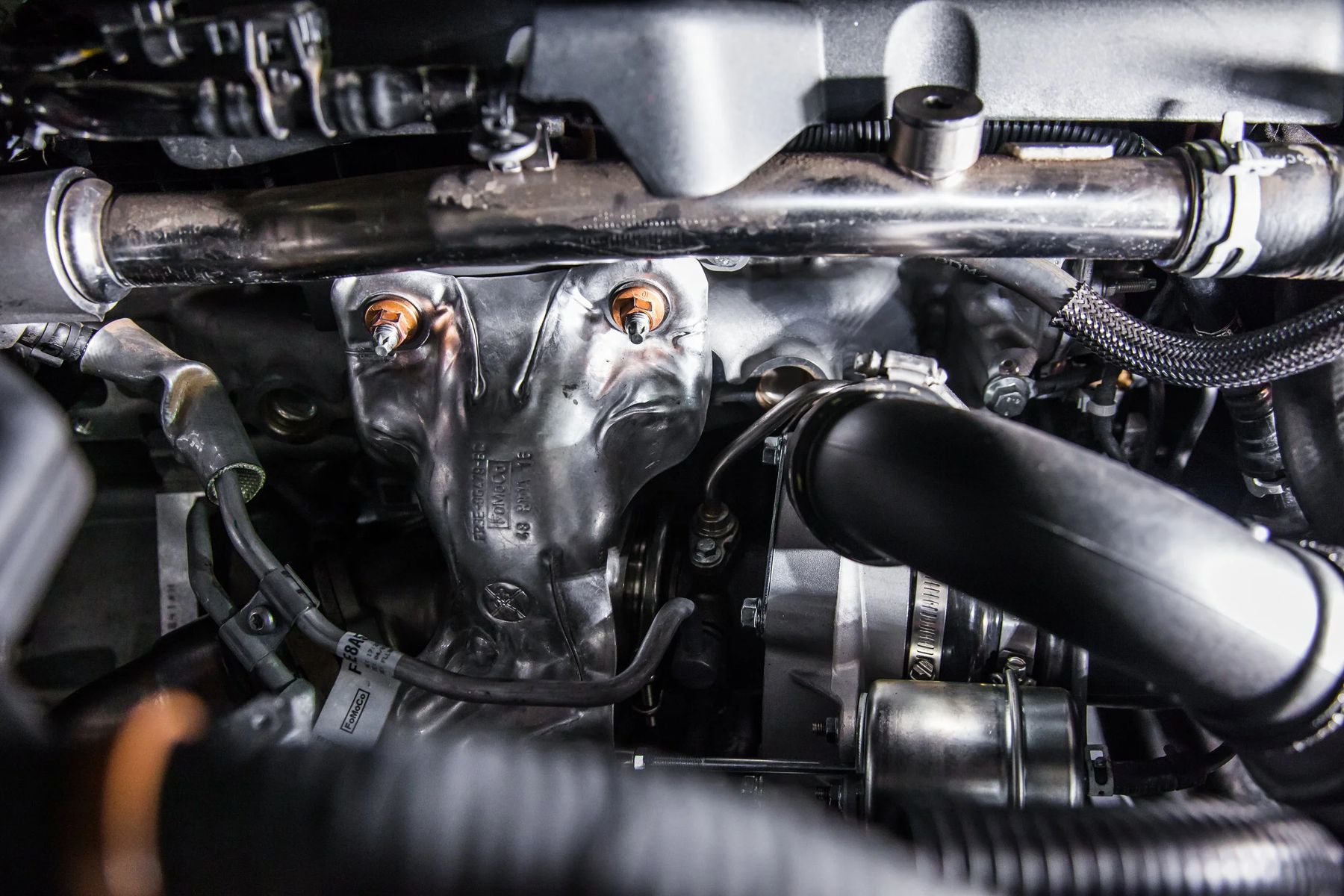

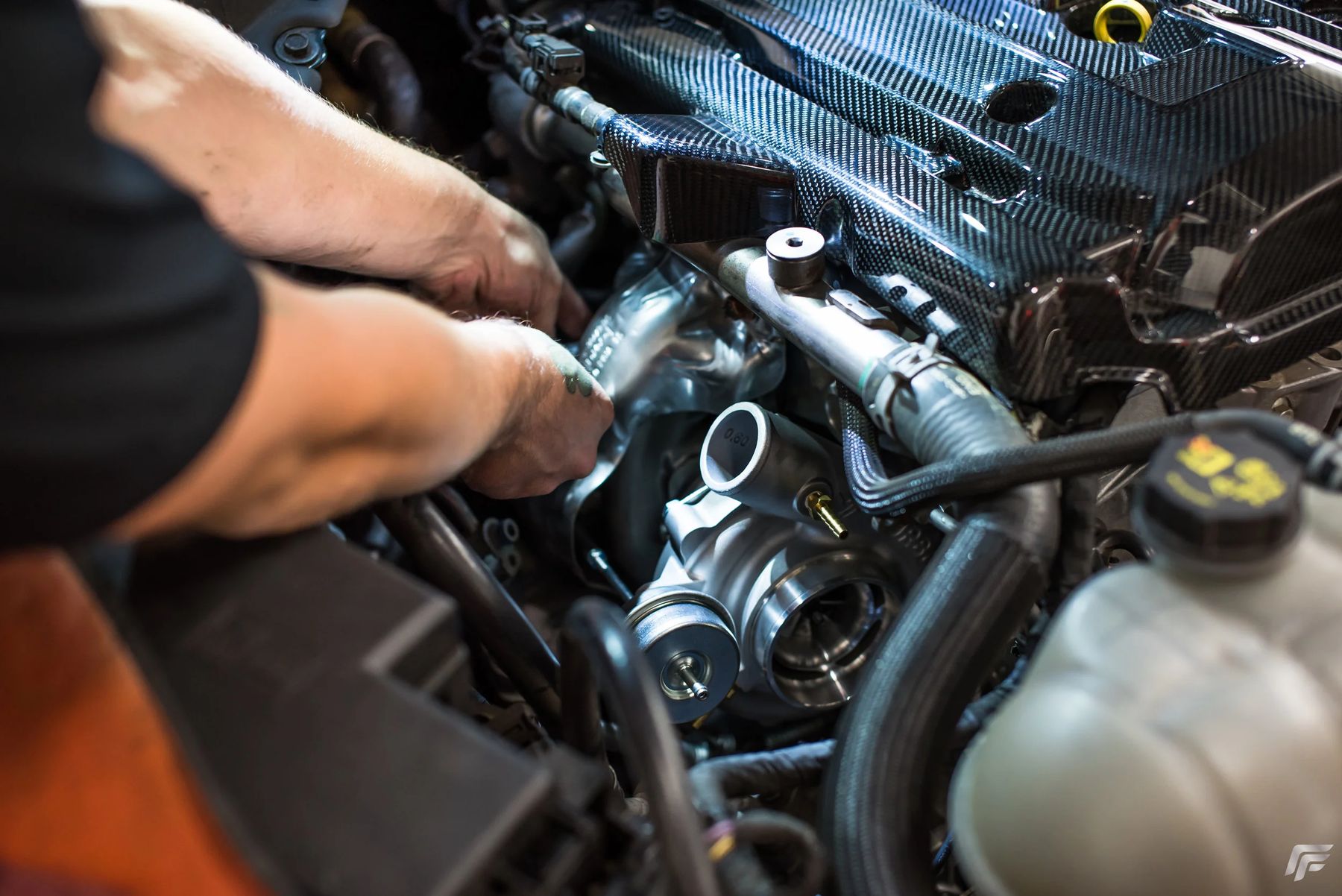

Let's start by prepping the turbo. Install the 2 provided studs into the turbine housing, these will be used to hold your OEM or aftermarket downpipe in place. Remove the OEM turbo gasket on the head. Install the provided Ford OEM gasket, make sure that the 90 degree lip of the gasket is facing outward. Remove and install the provided OEM Ford O-Rings onto your oil and coolant lines. You are now ready to get this bad boy into your Ecoboost. Install is straightforward, how you removed the OEM turbo is how you install the new unit. Make sure that it is flat against the head, install the head shield over the turbine side and use the new OEM hardware provided. Reconnect the downpipe using the provided Ford OEM downpipe flange, lip side faces the turbine, convex side faces the downpipe.

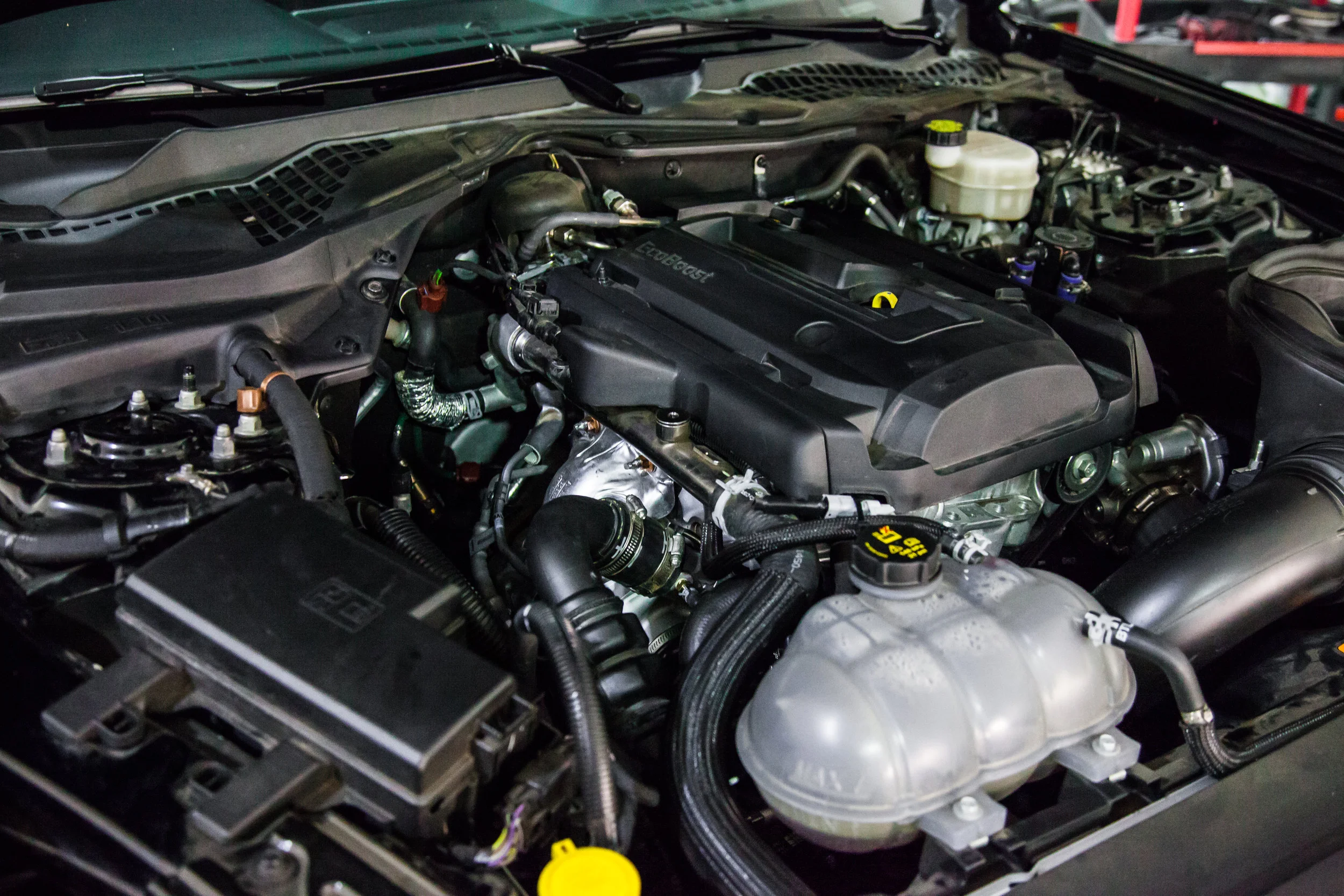

Connect your O2 sensor and get ready for the final pieces. Install the provided intake adaptor followed by your modified or stock intake tube. Attach your OEM or modified charge piping to the turbo and intercooler. From there you are ready to attach all your vacuum lines. Stand back, breathe heavy and get ready for some serious power out of your Ecoboost.
But before we start your car and you did opt for an oil change, take this time to dive under the car and remove your old oil filter and drain plug. After a few minutes of draining your oil, install your brand new OEM oil filter, make sure to put a thin layer of oil on the filter to make removal easy. Tighten your drain plug back up and pour 6 quarts of Motul Oil into fill cap. Open your coolant reservoir and dump a full can of Motul Mocool, later, you will warm the car up to see how much distilled water you will need to add. (BUT NOT YET) Step back and maraval your success. Or if we did your install, smile big cause you're on camera. Take a Snapchat or do it for the gram at this point.
Before we fire this party up, lets go through a quick checklist of parts.
Check oil level
Drain plug is tight
O2 is reconnected
All Vacuum lines are secured
Hose clamps are tight
Turbine to head nuts are tighten
Downpipe nuts are tighten
If all of that checks out, we assume that you have a tuner at this point. Communicate with your tuner to get a baseline map that uses wastegate pressure, 18PSI. Upload your new tune into your programmer, reset your oil life and now you are read for your first start up.
YOUR MUSTANG WILL SMOKE. That does not mean the world is ending. You will see visible smoke from the turbine and out the exhaust. Do not be alarmed, this is only oil coated residue to prevent rust. Yes, it will smell, stay calm and let it burn off. With a flashlight, check your turbocharger for ANY leaks. Check for engine codes, if all is good, let's go for a test drive.
Overall, this install will take an experienced tech will take 1 hour and a half, an ameatur enthusiast, around 4 and a half hours depending on if you have a lift. Difficulty of the job? Around 5/10, with removal of the actual turbo being the hardest part.
We highly recommend that you get your Mustang tuned after installing this turbo. You are safe to drive on a baseline tune but you will not have optimum performance. We are able to provide a recommend vendor for tuning. If you decide to run this turbo untuned, we cannot guarantee ANY WARRANTY, PROTECTION OR SAFEGUARD of your Mustangs existence.
Expect figures around 380WHP on 91 octane with amazing reponose. This engine is highly limited by fuel delivery from the factory. If you are looking to make more than 400 WHP, you will need to run 93 octane or E30. To receive every ounce of power from this turbo, 465 WHP, we highly recommend E85 with an auxiliary fuel kit.
*Install, dyno and performance video coming soon.
251 253 2032
Looking to purchase this exact set up or any other Ecoboost parts of us? Shoot us an email below

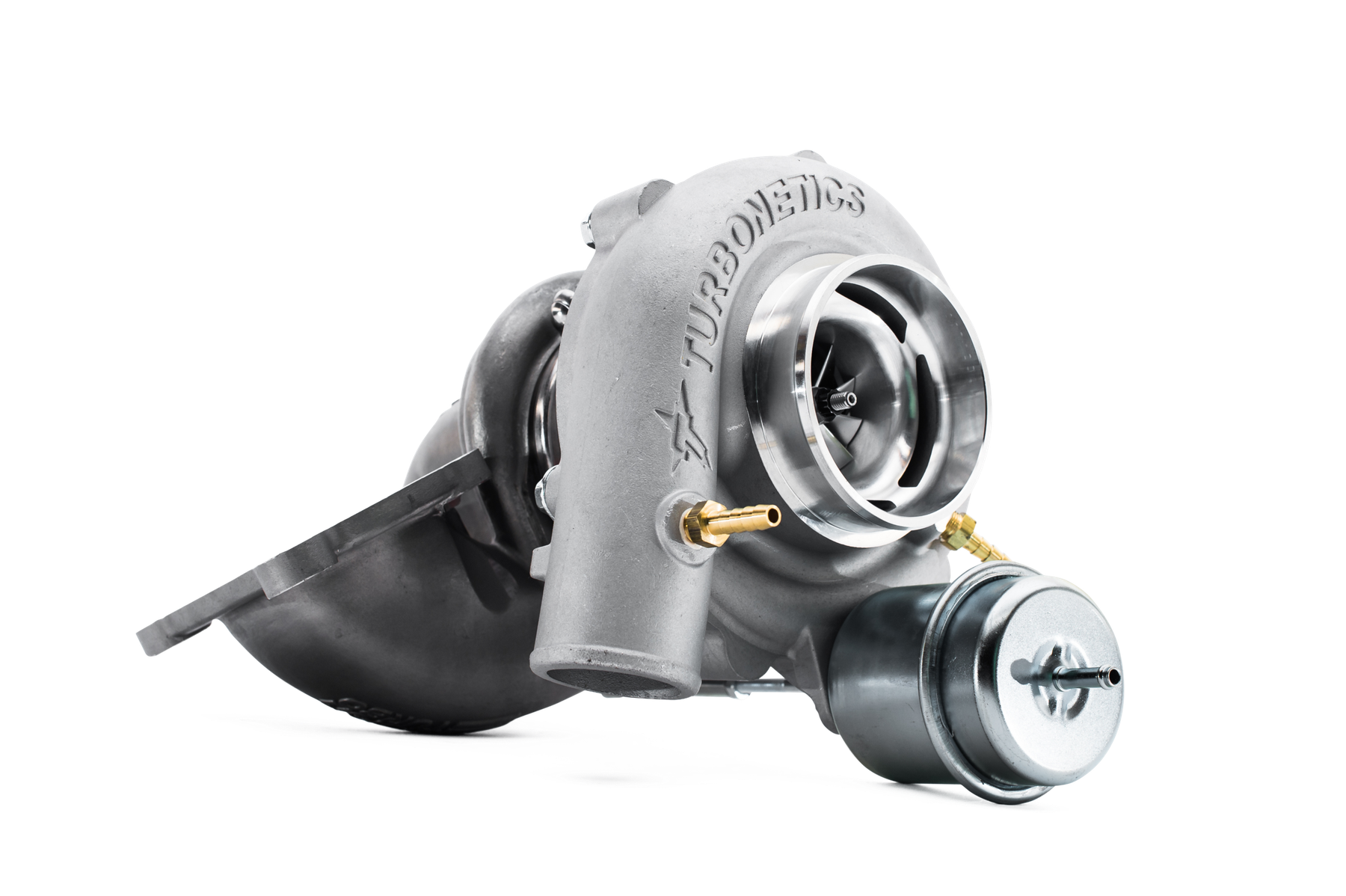

Delivering outstanding performance with a Dual Ball Bearing design and Billet Compressor Wheel, all while maintaining reliability and ease of install as a true drop-in, the Turbonetics NX2. Wake up your Ecoboost Mustang today.
